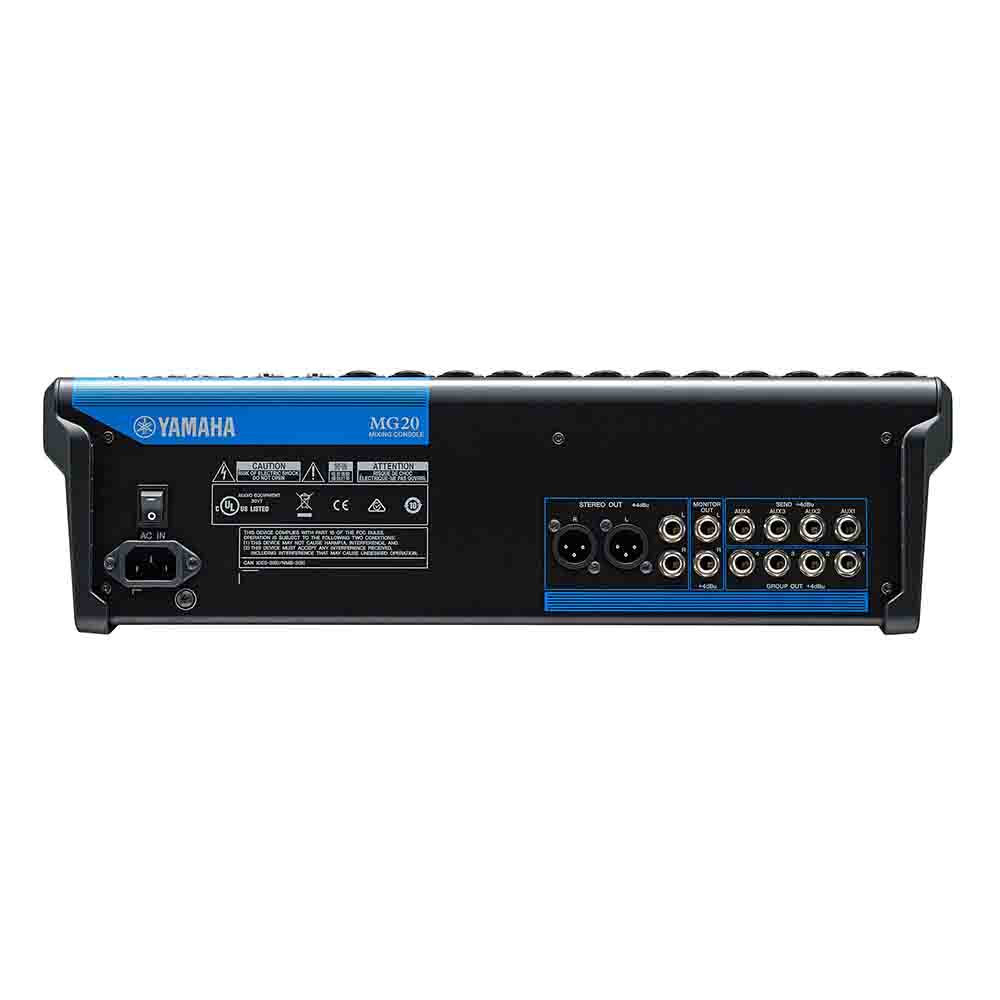

MG20XU
|

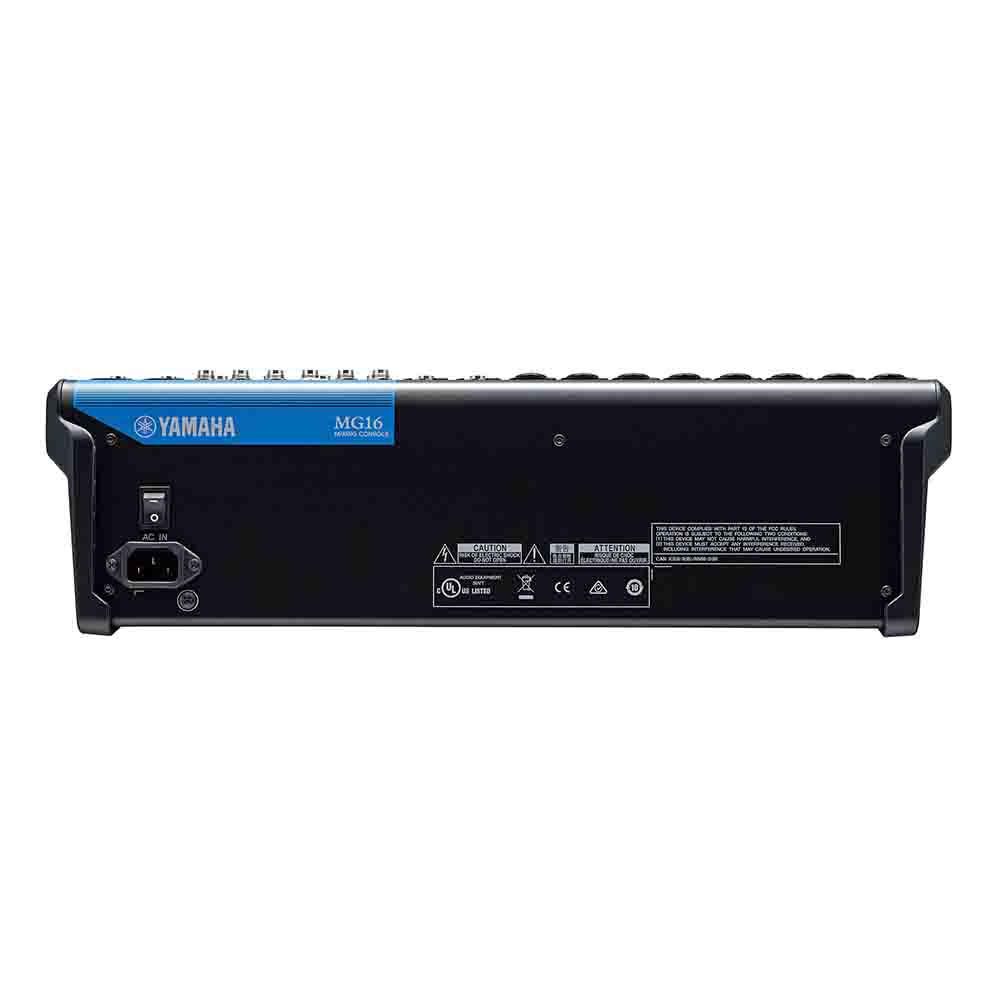

MG16XU
|

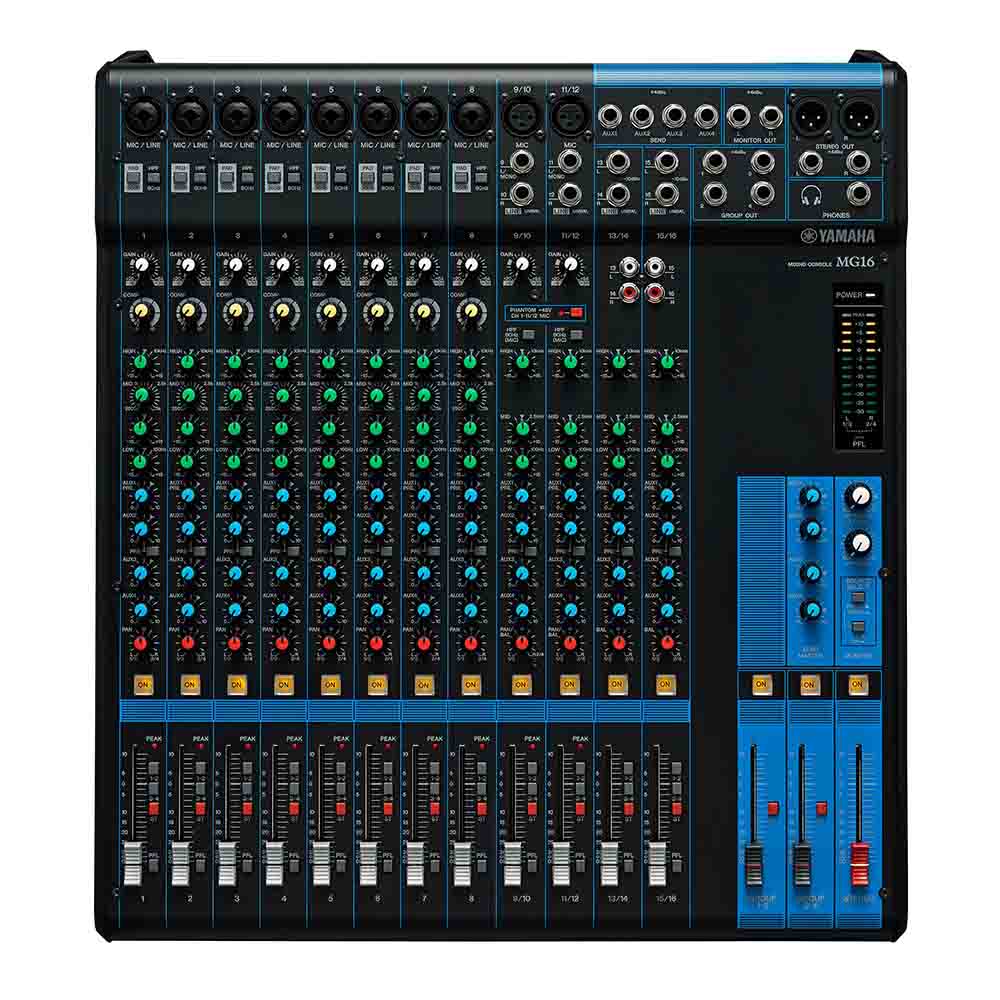

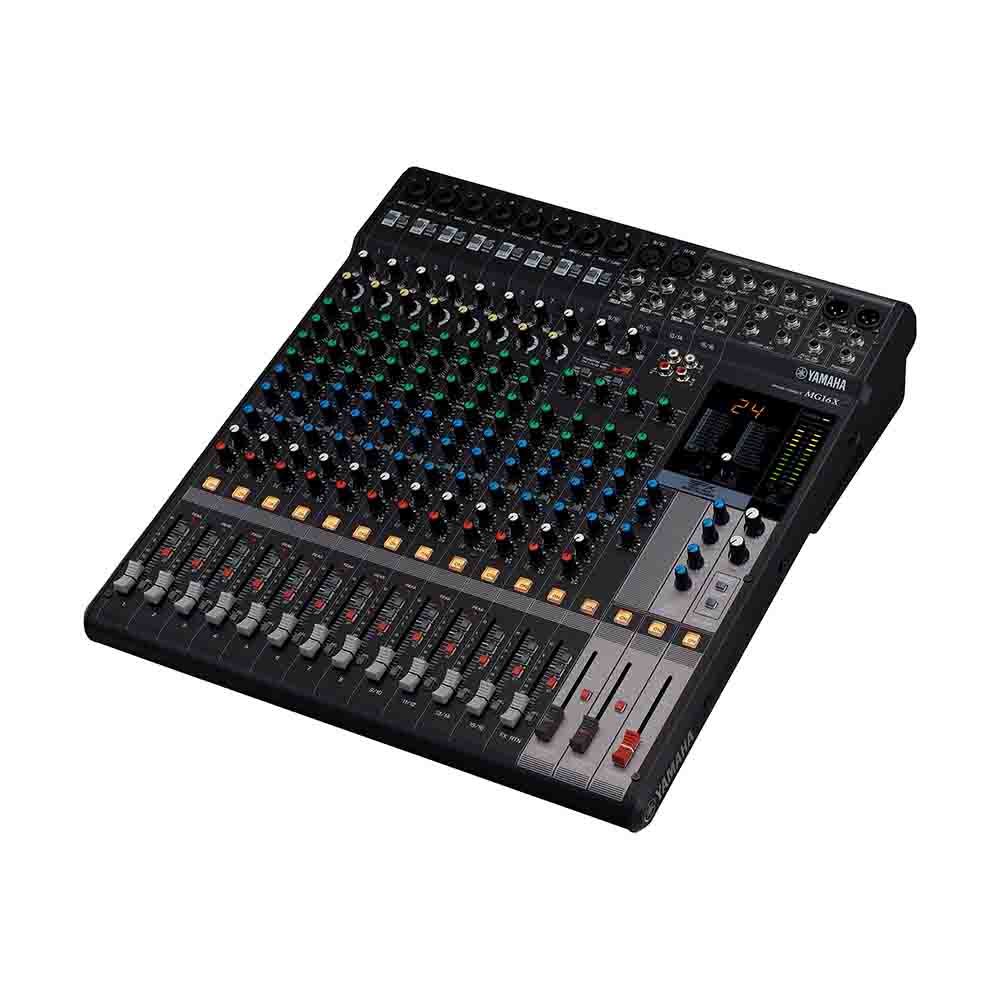

MG16X
|

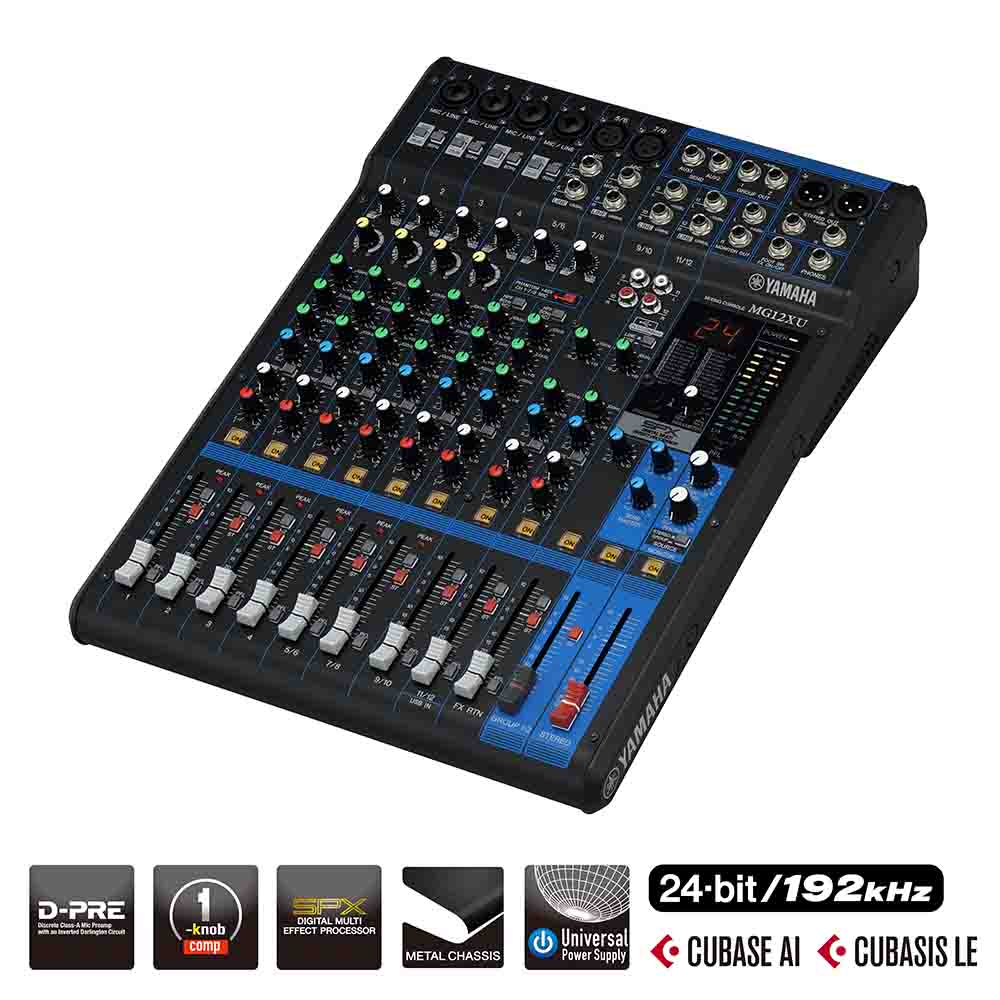

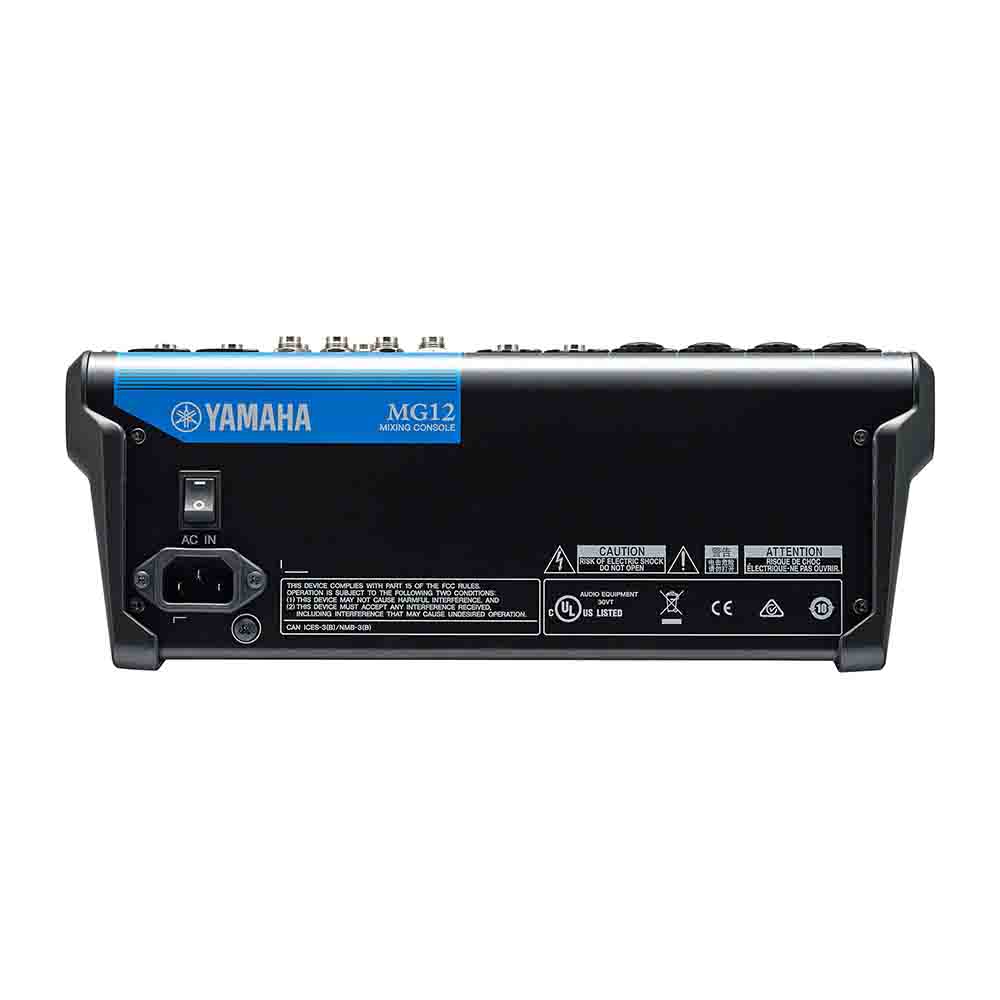

MG12XU
|

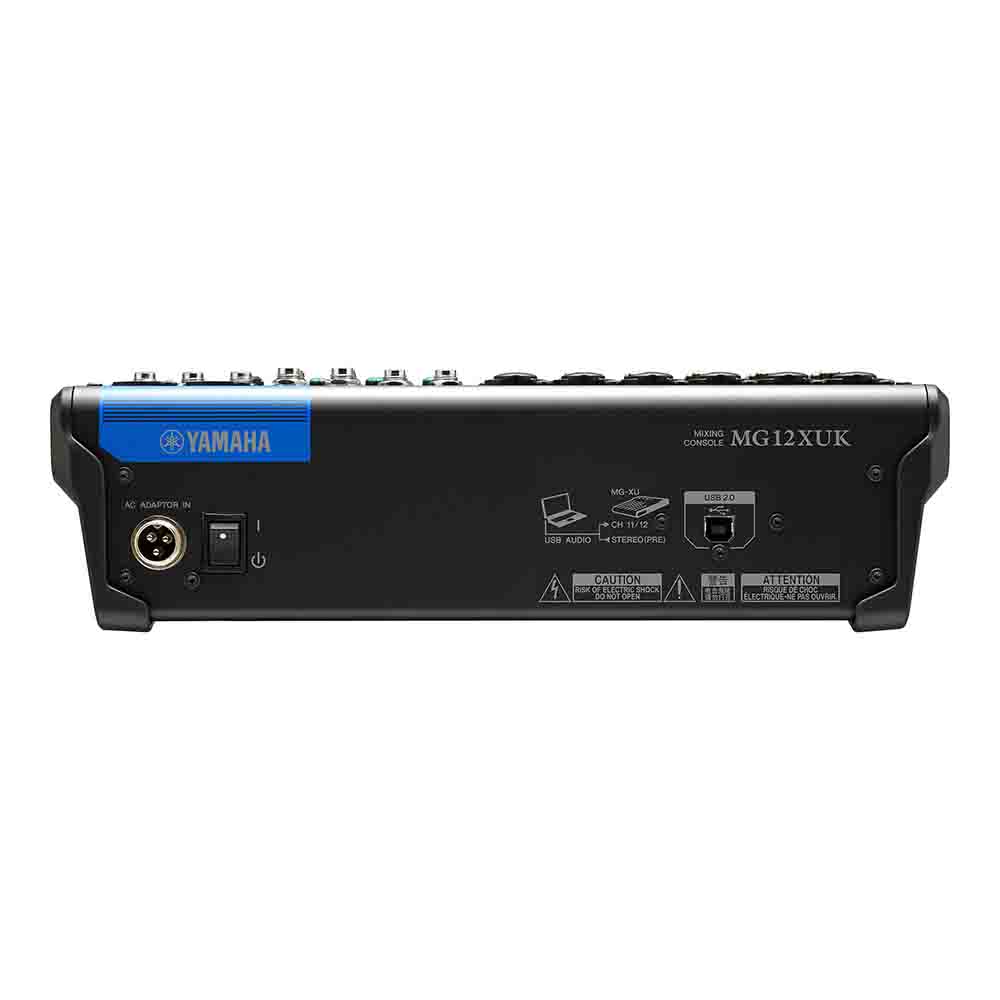

MG12XUK
|

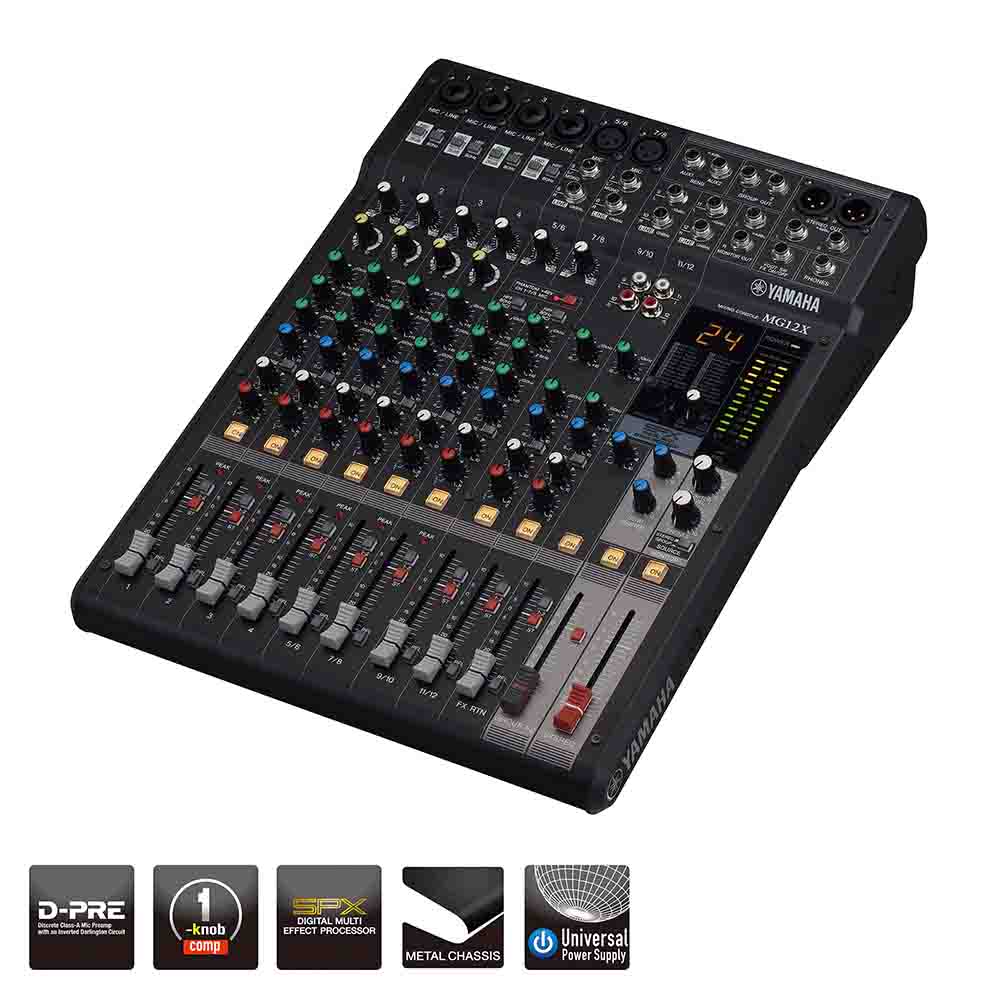

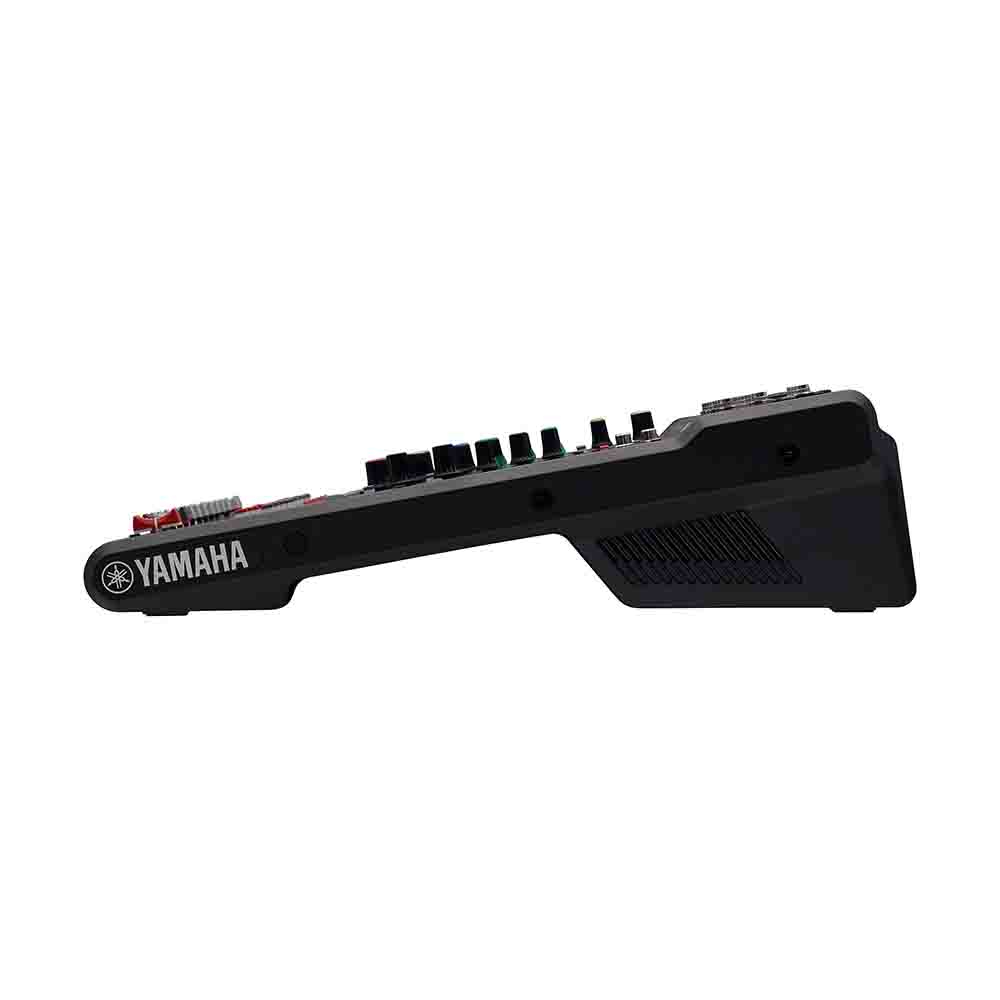

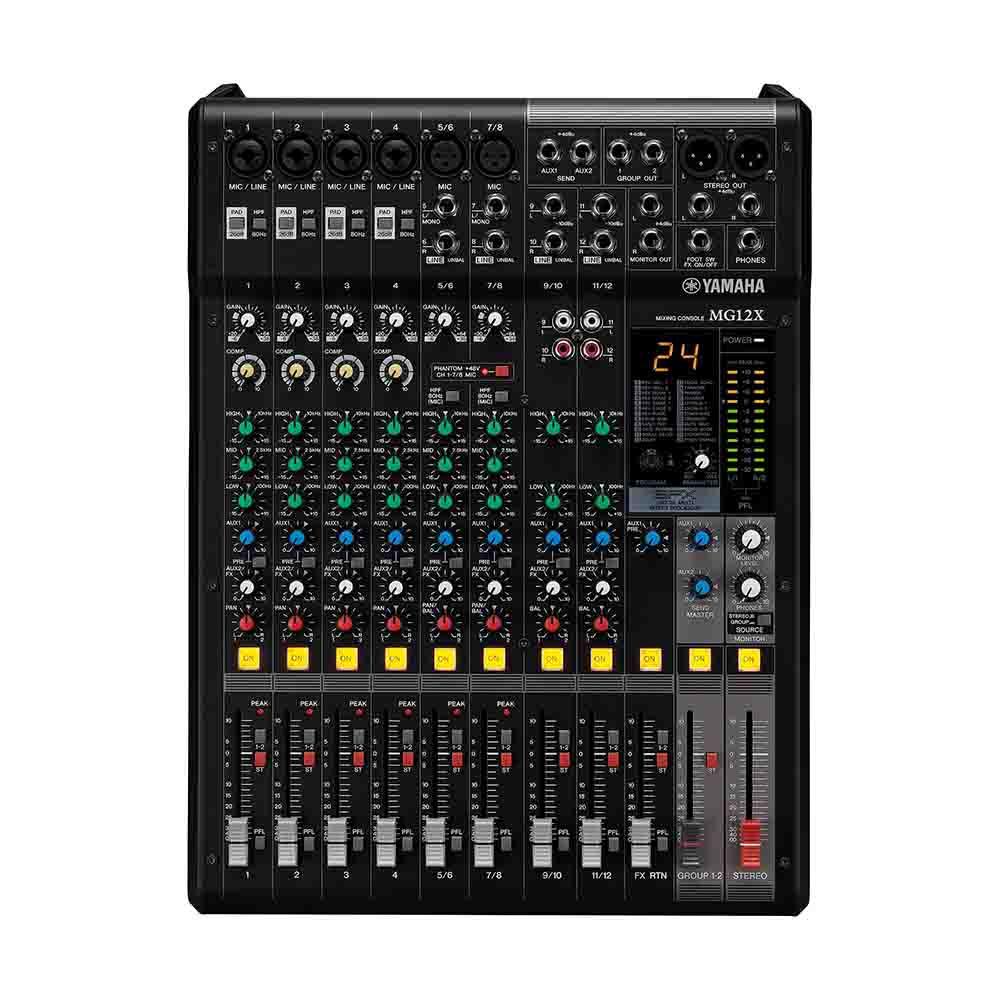

MG12X
|

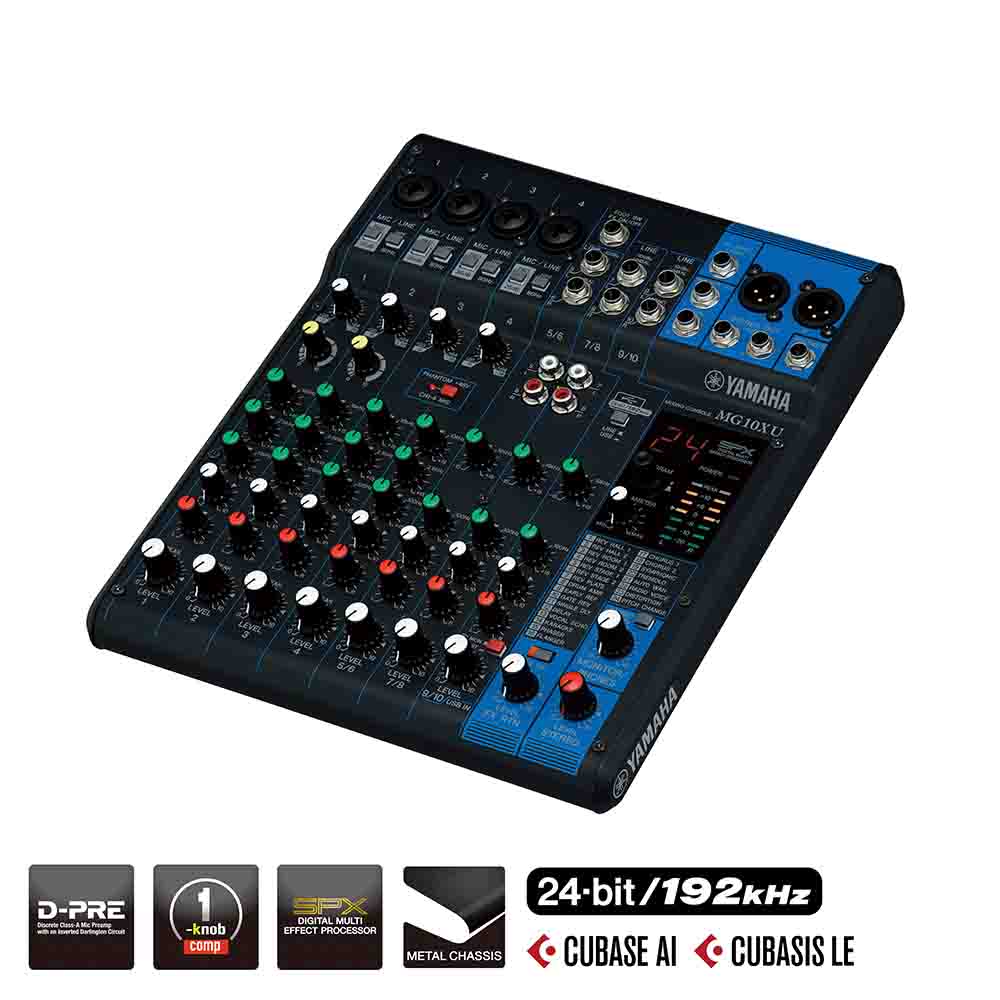

MG10XU
|

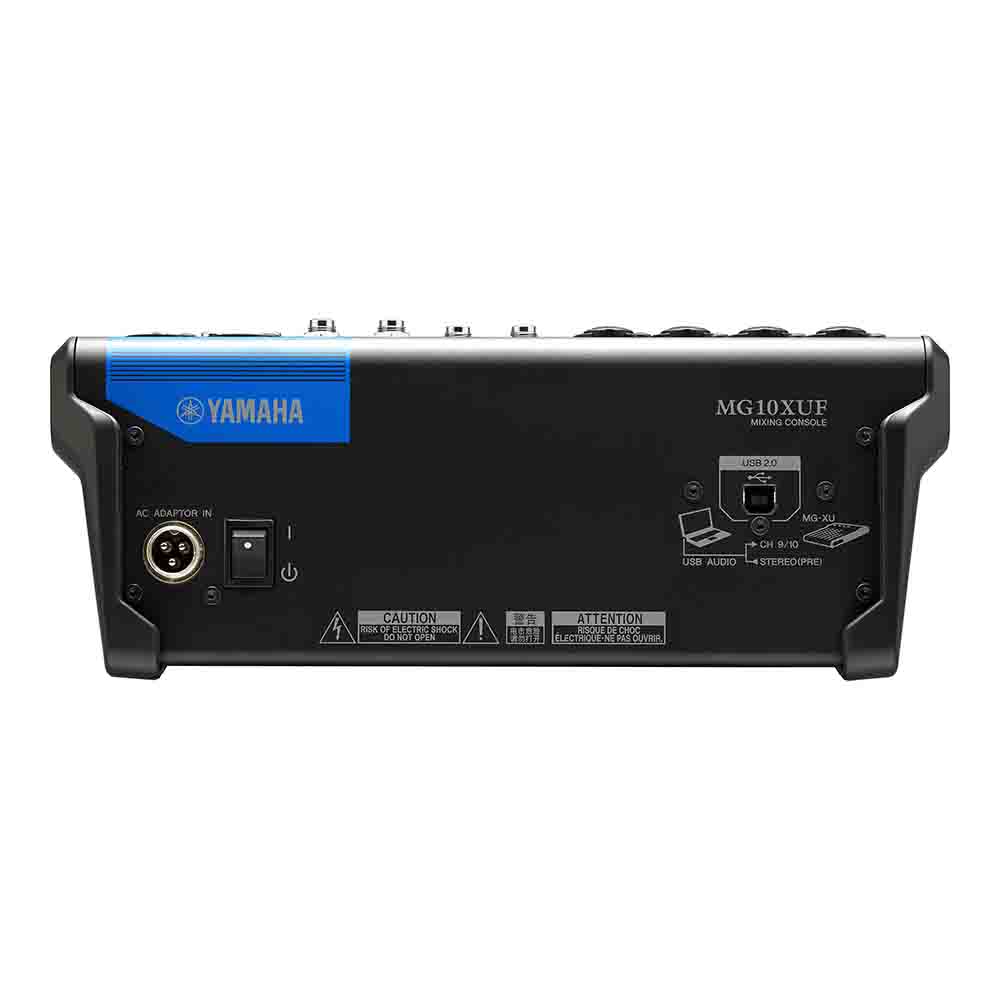

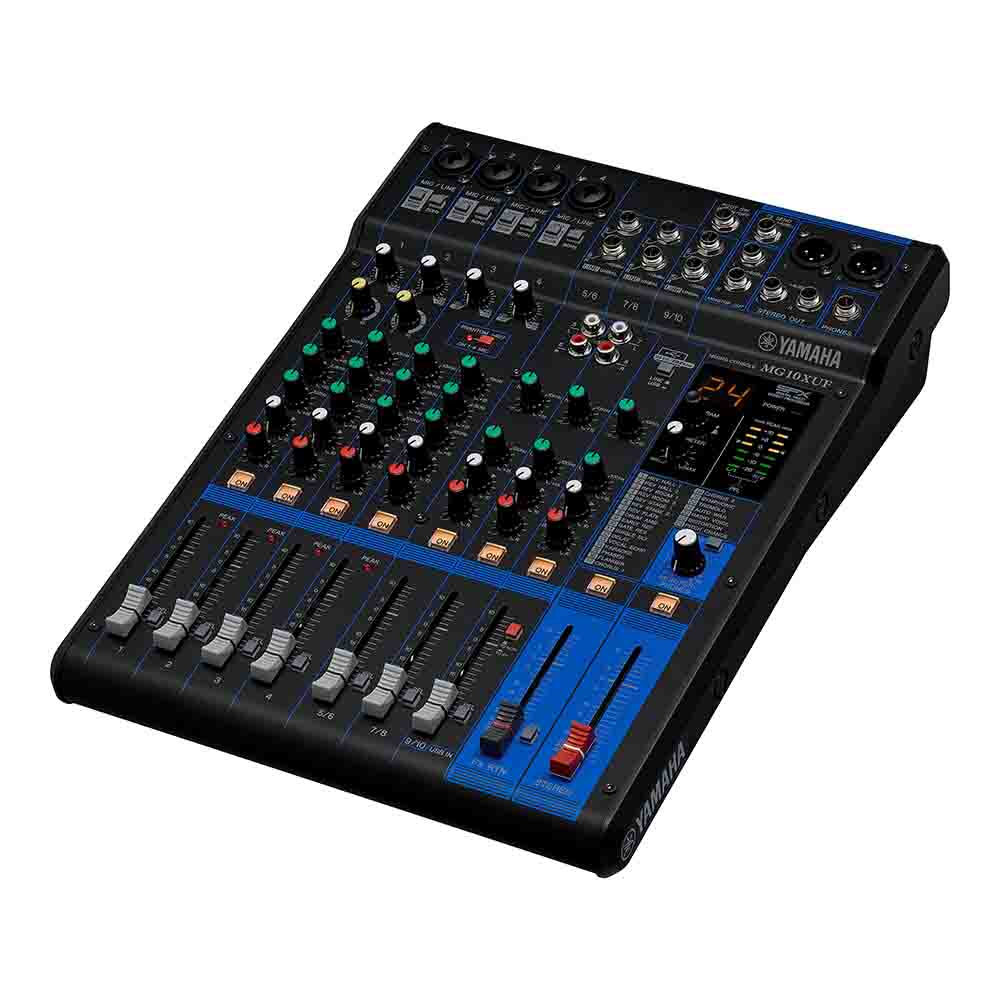

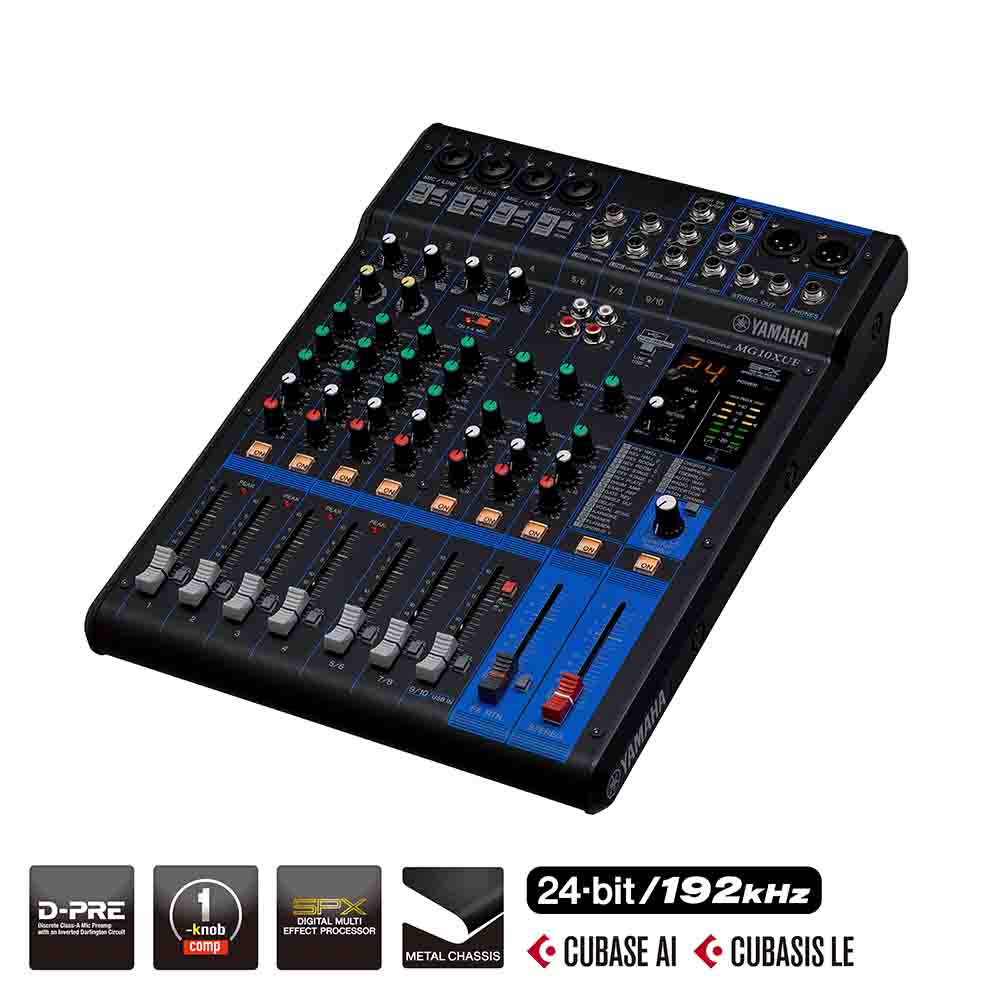

MG10XUF
|

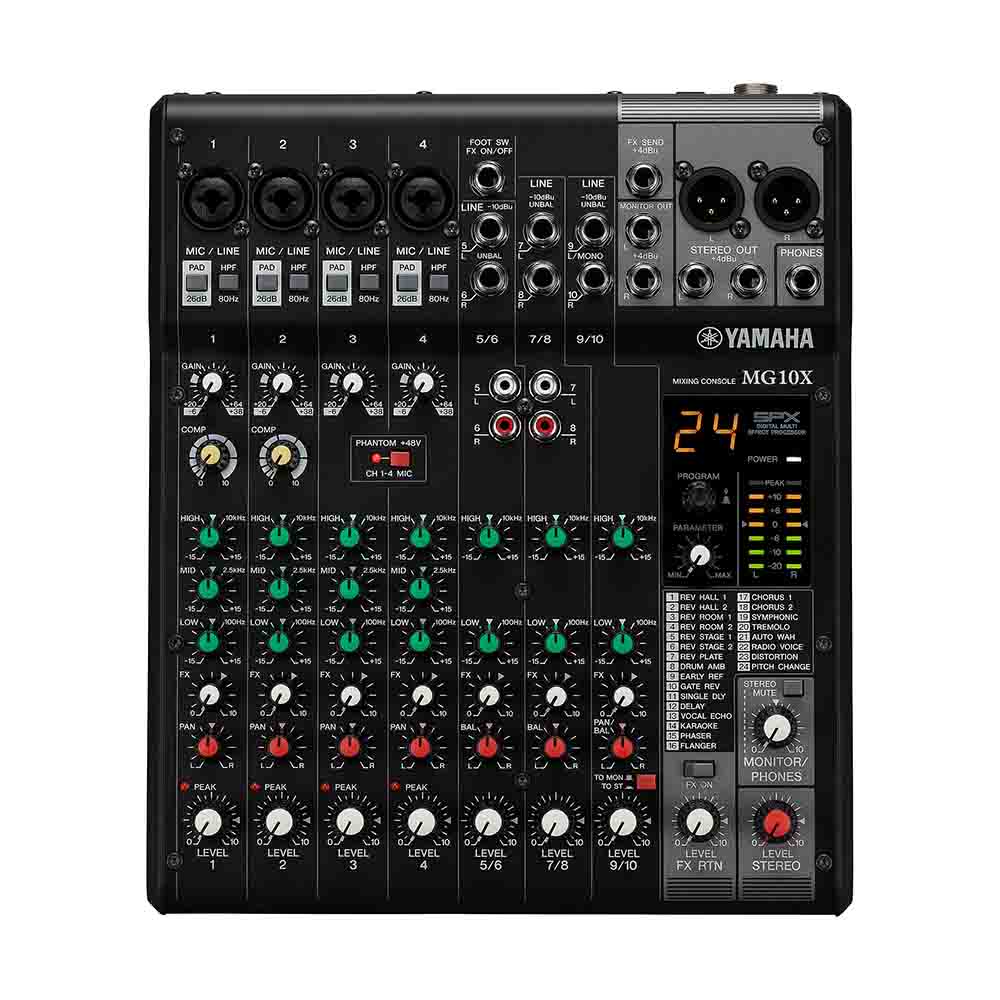

MG10X
|

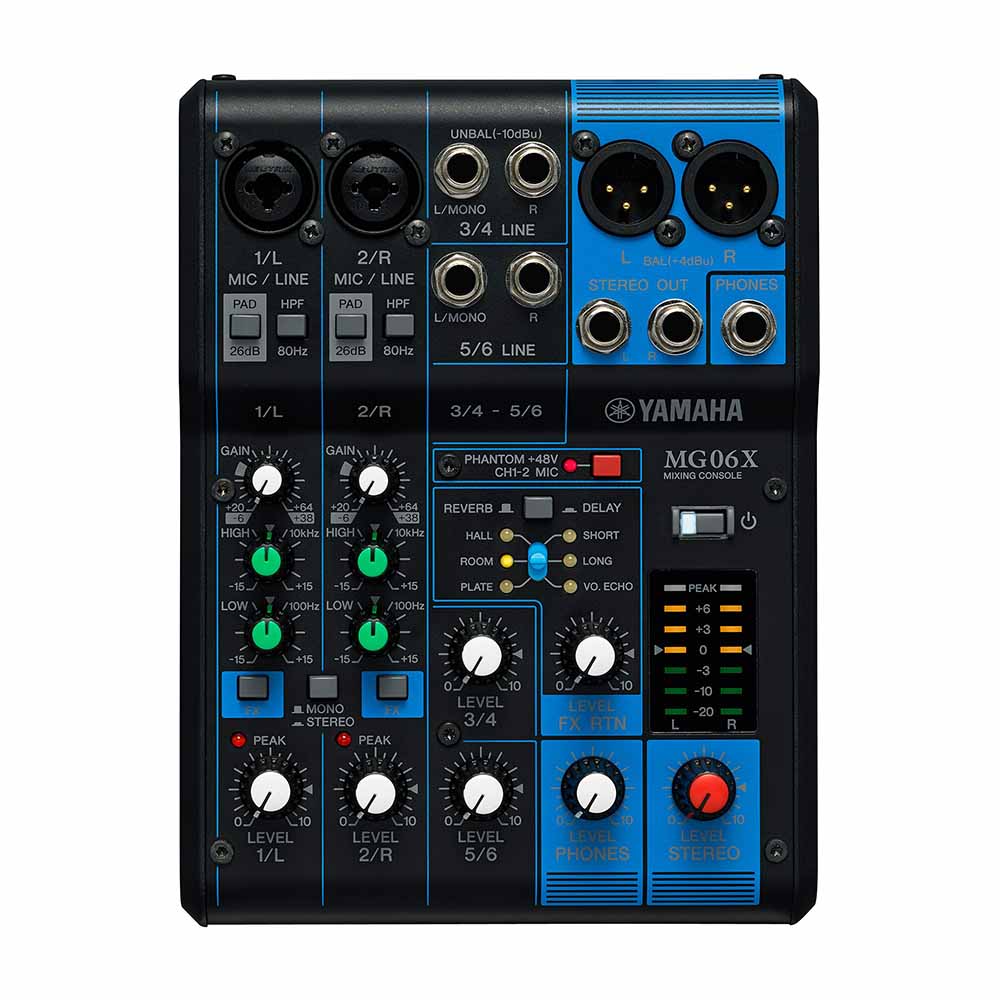

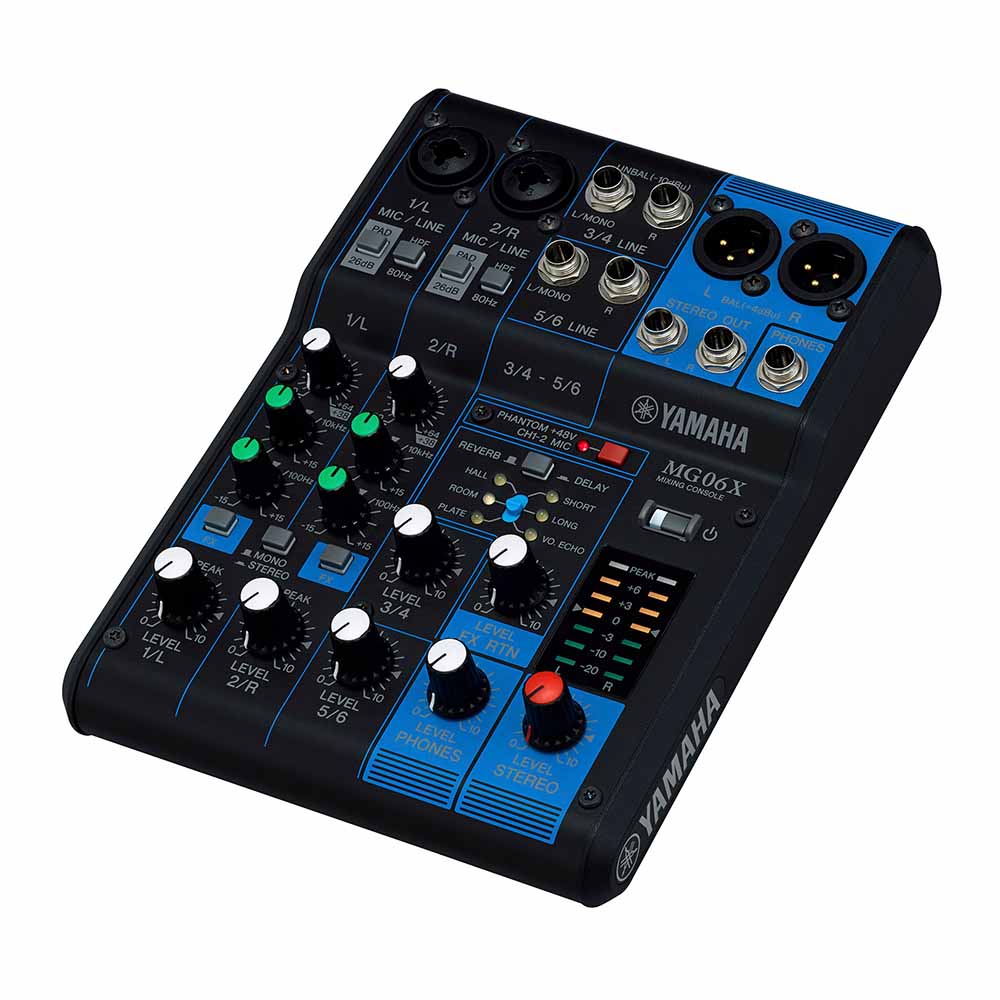

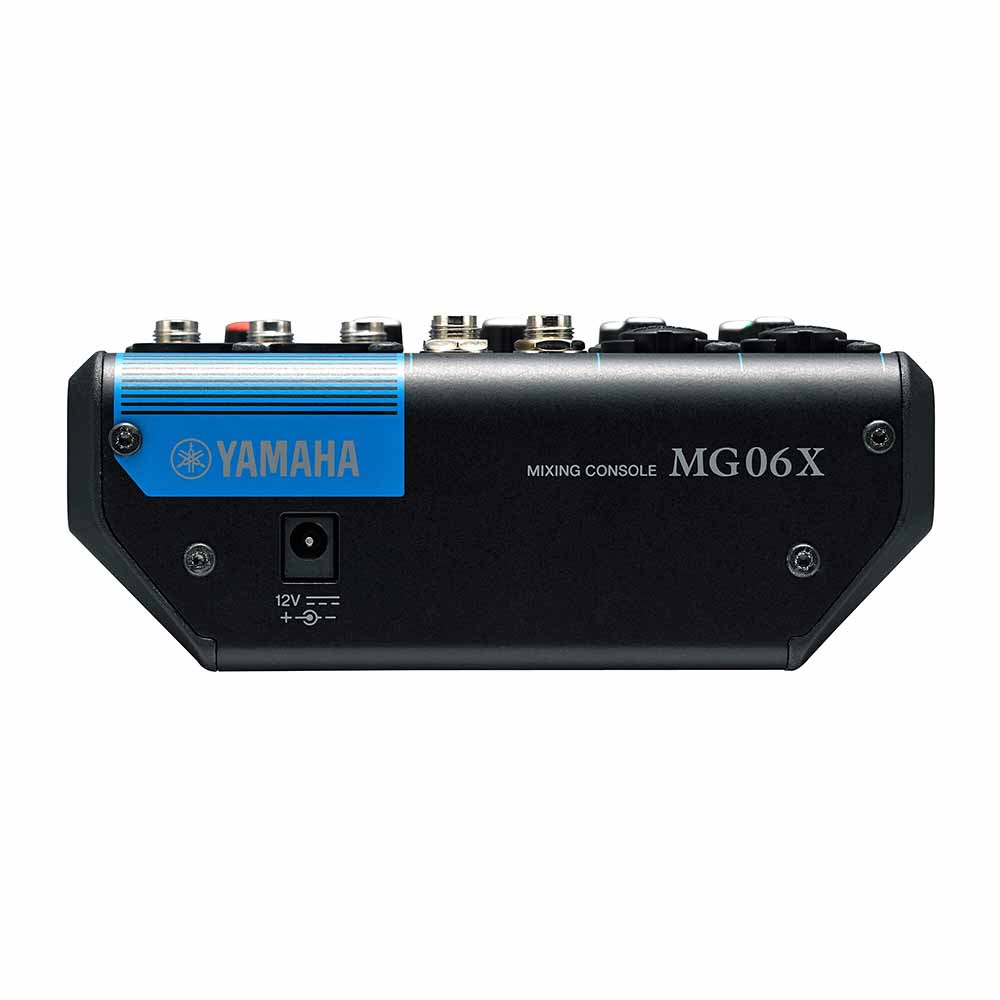

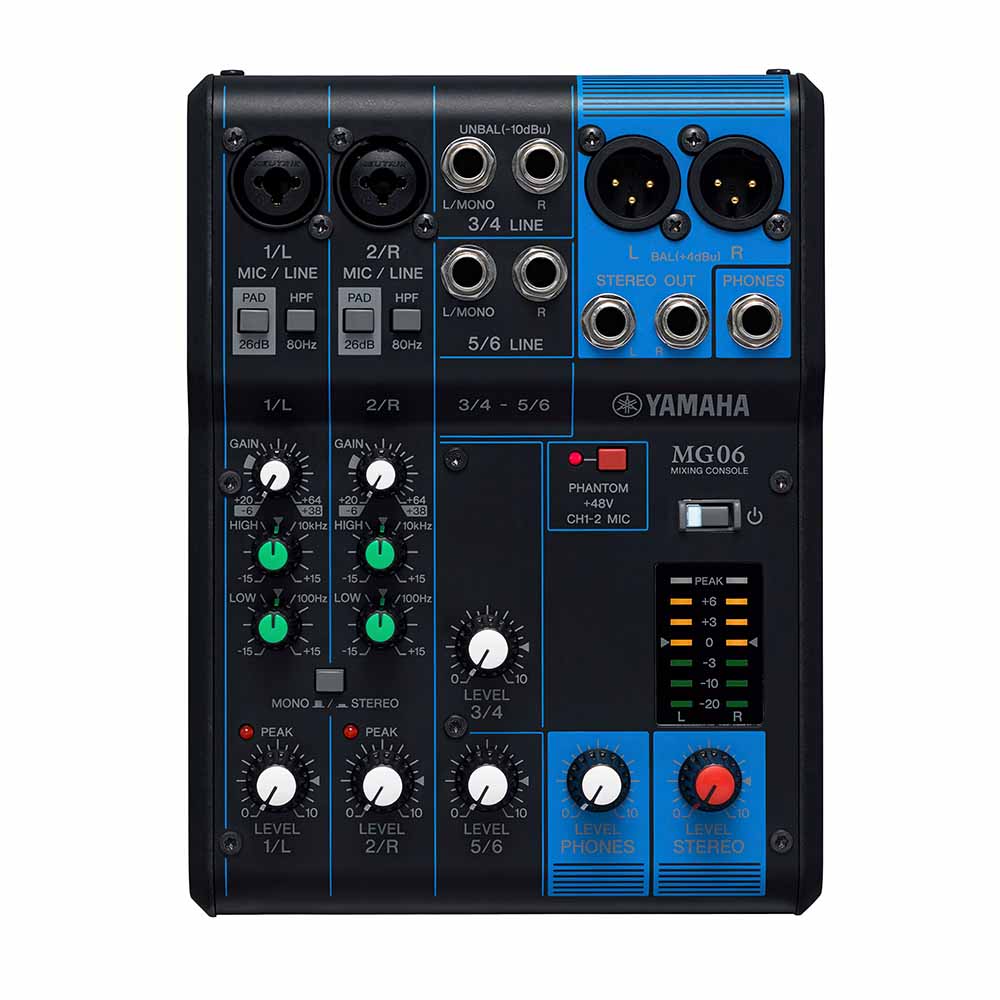

MG06X
|
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outline | Mixing capability | On-board processors | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) | SPX algorithm: 6 programs |
| I/O | Phantom power | +48 V | +48 V | +48 V | +48 V | +48 V | +48 V | +48 V | +48 V | +48 V | +48 V | |
| Digital I/O | USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | - | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | - | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | - | - | ||
| Input Channels | Mono[MIC/LINE] | 12 | 8 | 8 | 4 | 6 | 4 | 4 | 4 | 4 | 2 | |
| Mono/Stereo[MIC/LINE] | 4 | 2 | 2 | 2 | - | 2 | - | - | - | - | ||
| Stereo[LINE] | - | 2 | 2 | 2 | 3 | 2 | 3 | 3 | 3 | 2 | ||
| Output Channels | STEREO OUT | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| MONITOR OUT | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | ||
| PHONES | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| AUX SEND | 4 | 4 | 4 | 2 | 1 | 2 | 1 | 1 | 1 | - | ||
| GROUP OUT | 4 | 4 | 4 | 2 | - | 2 | - | - | - | - | ||
| Bus | Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) | Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) | Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) | Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) | Stereo: 1, AUX[FX]: 1 | Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) | Stereo: 1, AUX[FX]: 1 | Stereo: 1, AUX[FX]: 1 | Stereo: 1, AUX[FX]: 1 | Stereo: 1 | ||
| Input Channel Function | PAD | 26 dB (Mono) | 26 dB (Mono) | 26 dB (Mono) | 26 dB (Mono) | 26 dB (Mono) | 26 dB (Mono) | 26 dB (Mono) | 26 dB (Mono) | 26 dB (Mono) | 26 dB (Mono) | |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | 80 Hz, 12 dB/oct (Mono) | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | 80 Hz, 12 dB/oct (Mono) | 80 Hz, 12 dB/oct (Mono) | 80 Hz, 12 dB/oct (Mono) | 80 Hz, 12 dB/oct (Mono) | ||
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec | - | ||
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | ||
| EQ MID | Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking | Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking | Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking | - | ||
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | ||
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | LED turns on when post EQ signal reaches 3 dB below clipping | LED turns on when post EQ signal reaches 3 dB below clipping | LED turns on when post EQ signal reaches 3 dB below clipping | LED turns on when post EQ signal reaches 3 dB below clipping | LED turns on when post EQ signal reaches 3 dB below clipping | LED turns on when post EQ signal reaches 3 dB below clipping | LED turns on when post EQ signal reaches 3 dB below clipping | LED turns on when post EQ signal reaches 3 dB below clipping | LED turns on when post EQ signal reaches 3 dB below clipping | ||
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] | 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] | ||
| General specifications | Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min | 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min | |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | ||
| Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) | -102 dBu (STEREO OUT, STEREO master fader: Min) | -102 dBu (STEREO OUT, STEREO master fader: Min) | -102 dBu (STEREO OUT, STEREO master fader: Min) | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) | -102 dBu (STEREO OUT, STEREO master fader: Min) | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) | -102 dBu (STEREO OUT, STEREO master fader: Min) | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) | ||
| Crosstalk | -78 dB | -78 dB | -78 dB | -78 dB | -83 dB | -78 dB | -83 dB | -83 dB | -83 dB | -88 dB | ||
| Power requirements | AC 100 – 240 V, 50 / 60 Hz | AC 100 – 240 V, 50 / 60 Hz | AC 100 – 240 V, 50 / 60 Hz | AC 100 – 240 V, 50 / 60 Hz | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha | AC 100 – 240 V, 50 / 60 Hz | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha | PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha | ||
| Power consumption | 36 W | 30 W | 30 W | 22 W | 22.9 W | 22 W | 22.9 W | 22.9 W | 22.9 W | 12 W | ||
| Dimensions | W | 444 mm (17.5") | 444 mm (17.5") | 444 mm (17.5") | 308 mm (12.1") | 315 mm (12.4") | 308 mm (12.1") | 244 mm (9.6") | 275 mm (10.8") | 244 mm (9.6") | 149 mm (5.9") | |
| H | 130 mm (5.1") | 130 mm (5.1") | 130 mm (5.1") | 118 mm (4.6") | 91 mm (3.6") | 118 mm (4.6") | 71 mm (2.8") | 110 mm (4.3") | 71 mm (2.8") | 62 mm (2.4") | ||
| D | 500mm (19.7") | 500 mm (19.7") | 500 mm (19.7") | 422 mm (16.6") | 297mm (11.7") | 422 mm (16.6") | 294 mm (11.6") | 390 mm (15.4") | 294 mm (11.6") | 202 mm (7.9") | ||
| Net weight | 7.1kg (15.7 lbs.) | 6.8 kg (15.0 lbs.) | 6.8 kg (15.0 lbs.) | 4.2 kg (9.3 lbs.) | 3.0kg(6.62 lbs) | 4.2 kg (9.3 lbs.) | 2.1 kg (4.63 lbs.) | 3.3 kg (7.3 lbs) | 2.1 kg (4.63 lbs.) | 0.9 kg (1.98 lbs.) | ||
| Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit, Optional Accessory: Foot Switch FC5 | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5 | Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Foot Switch FC5 | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5 | Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5 | Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Foot Switch FC5 | Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5 | Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A | ||
| Others | Operating Temperature: 0 to +40˚C | Operating Temperature: 0 to +40˚C | Operating Temperature: 0 to +40˚C | Operating Temperature: 0 to +40˚C | Operating Temperature: 0 to +40˚C | Operating Temperature: 0 to +40˚C | Operating Temperature: 0 to +40˚C | Operating Temperature: 0 to +40˚C | Operating Temperature: 0 to +40˚C | Operating Temperature: 0 to +40˚C | ||
